Parent Layer: Natural

Name: Watersheds

Display Field: STR_NAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: This data set defines the protected watersheds in Union County that supply Lake Twitty and Lake Lee. Watersheds are an area supplying runoff water to a master stream and its tributaries. The source for this data was taken from areas defined by the USDA-NRCS office in Monroe. Staff at the USDA-NRCS office defined the areas on USGS 7.5 minute quad sheets by observing the contour lines published on the quad sheets. The Union County Planning Department was responsible for storing and displaying these maps to the public. The Union County GIS Department then took the USGS maps to digitize the watershed boundaries. The quad sheets were referenced in the North Carolina State Plane coordinate system in ArcInfo and digitized from digitizing table. Once the boundaries were digitized they were built into polygons and populated with the revelant data.

Service Item Id: aef3d65b232c4142a0acd997a022fc00

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1507982.000118941
YMin: 413082.9998764545
XMax: 1558922.000072822
YMax: 495144.09370452166
Spatial Reference: 102719  (2264)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [252, 212, 226, 255]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• WSW_ ( type: esriFieldTypeDouble, alias: WSW_ )
• WSW_ID ( type: esriFieldTypeDouble, alias: WSW_ID )
• CLASS ( type: esriFieldTypeString, alias: CLASS, length: 15 )
• RIV_BAS ( type: esriFieldTypeString, alias: RIV_BAS, length: 20 )
• STR_NAME ( type: esriFieldTypeString, alias: STR_NAME, length: 45 )
• CL_DATE ( type: esriFieldTypeString, alias: CL_DATE, length: 10 )
• PCA_TYPE ( type: esriFieldTypeString, alias: PCA_TYPE, length: 2 )
• ACRES ( type: esriFieldTypeDouble, alias: ACRES )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

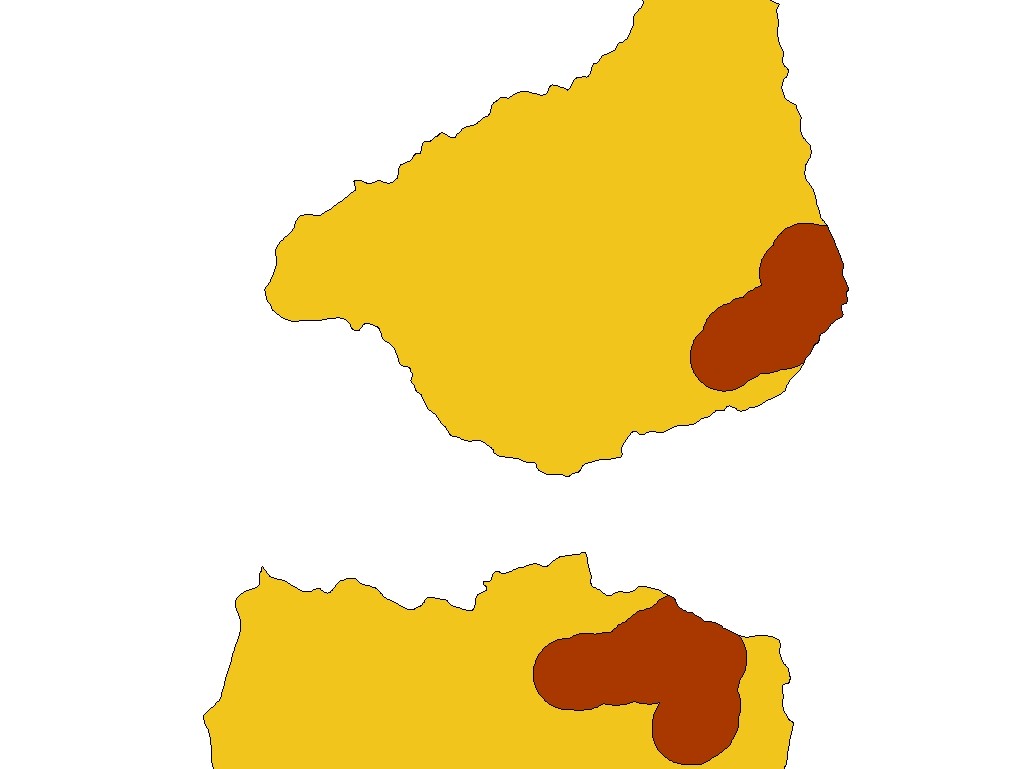

  Iteminfo   Thumbnail   Metadata
